World Athletics (IAAF) Compliant Infrastructure

Professional Sandwich & Full PUR Synthetic Running Track Construction

SportsCamp Infra specializes in designing and constructing premier 13mm Sandwich System and 13mm Full Pour PU (Full PUR) Synthetic Athletic Running Tracks for universities, sports complexes, stadiums, schools, and military academies across India adhering strictly to World Athletics (IAAF) technical standards.

Get Free Quote View Projects
13mm Sandwich System
13mm Full PUR System
Terracotta Red / Blue / Green
World Athletics / IAAF Grade

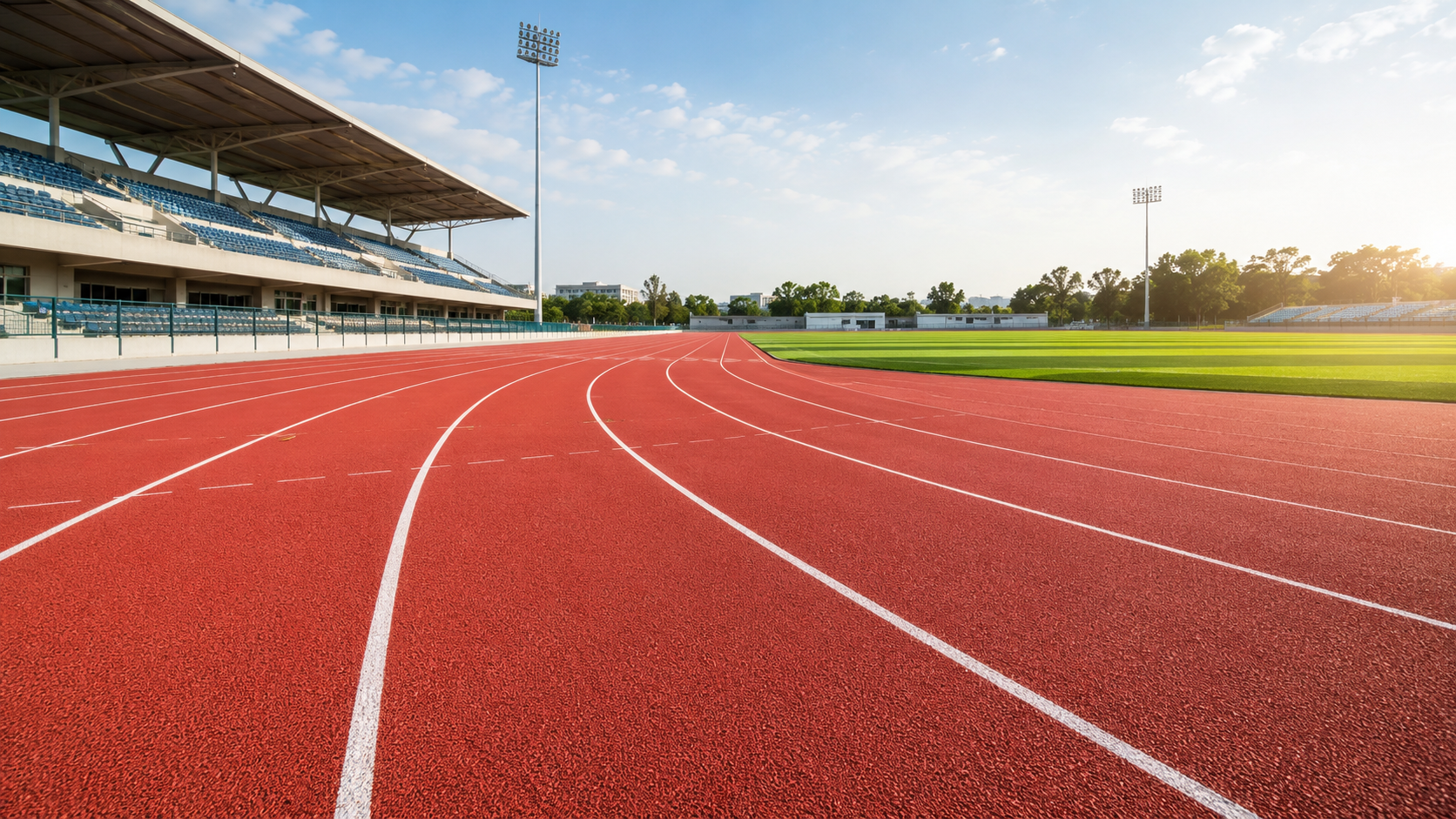

Athletic Running Track Construction

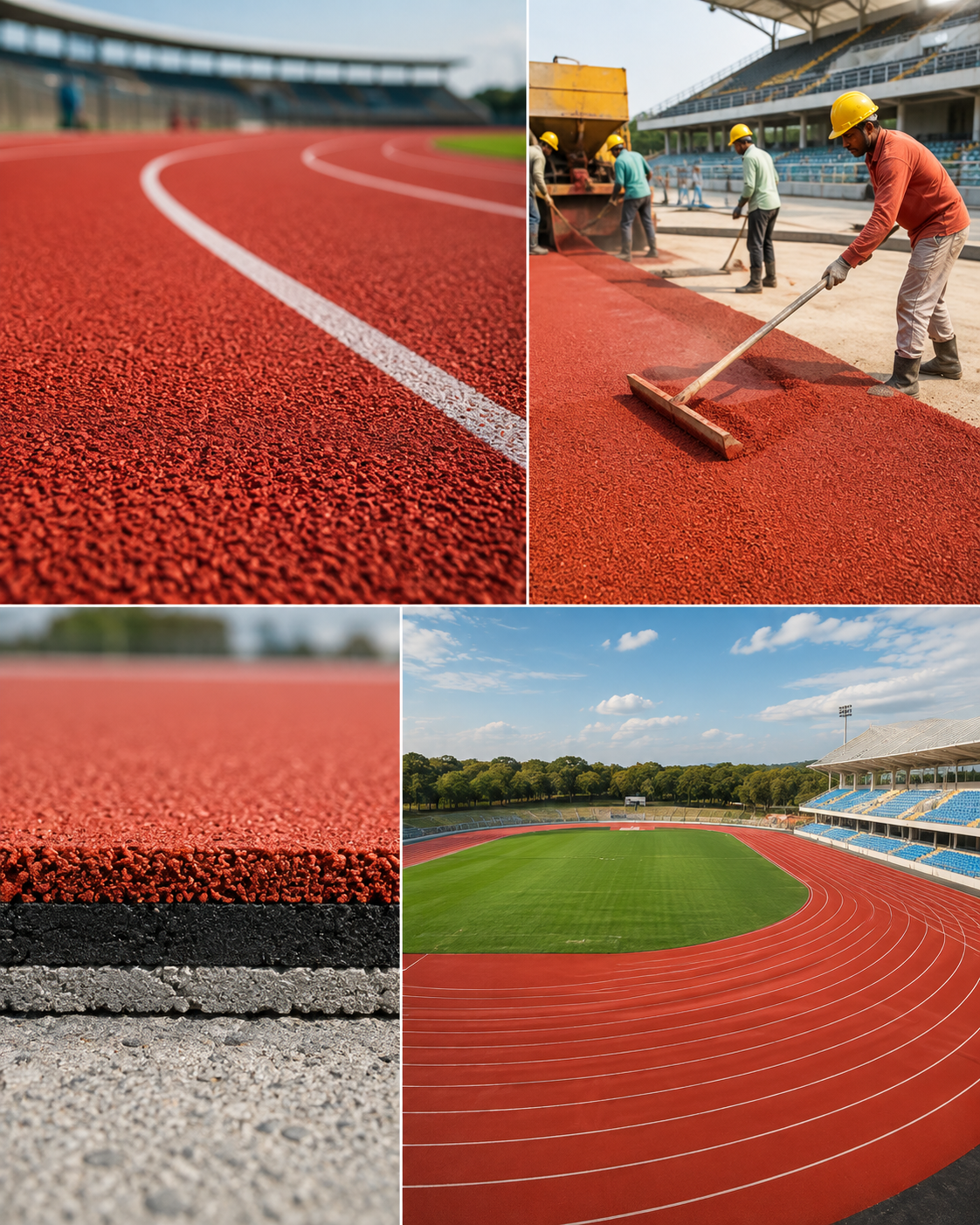

Running Track Overview
ABOUT ATHLETIC RUNNING TRACKS

World-Class Synthetic Athletic Running Track Solutions

SportsCamp Infra delivers IAAF/World Athletics certified synthetic rubber running tracks engineered for high energy restitution, force reduction, and spike resistance. Whether you require a cost-effective 13mm Sandwich System for school training or an elite 13mm Full Pour Polyurethane (Full PUR) track for international competition stadiums, our certified installation team ensures sub-millimeter slope accuracy and all-weather durability.

IAAF Approved Materials

Only certified MDI polyurethane resins, virgin EPDM, and SBR granules are used.

Laser Slope Leveling

Constructed with exact 0.5% – 1% transverse slope for instant rainwater drainage.

Spike Resistant Surface

Durable elastomeric rubber matrix withstands 6mm to 9mm athletic track spikes.

After Sales Support

Complete periodic line marking re-touching and surface maintenance support.

ATHLETIC TRACK SYSTEMS

Our Running Track Systems

Choose between our two primary IAAF-compliant synthetic running track systems engineered for training facilities and international competition.

POPULAR TRAINING TRACK

13mm Sandwich Track System

13mm Total Thickness (7mm SBR + 6mm EPDM)

The Sandwich System is a multi-layer hybrid running track constructed with a 7mm in-situ poured recycled SBR shock cushion base layer, sealed with a polyurethane pore sealer, and topped with a 6mm cast-in-place virgin EPDM colored granule wear layer.

Base Shock Cushion 7mm Recycled SBR Granules + MDI Binder
Top Wear Layer 6mm Virgin Colored EPDM Granules (1-4mm)
Total System Thickness 13 mm Official Standard
Force Reduction 35% – 45% Shock Absorption
Recommended For Schools, Universities, Sports Academies
Expected Lifespan 10 to 12 Years
  • High Cost-Performance Ratio for Multi-Sport Use
  • Non-Porous All-Weather Anti-Slip Surface
  • Seamless Jointless Poured Application
  • UV-Stabilized Color Retention
ELITE IAAF COMPETITION

13mm Full PUR System (Full PU)

13mm Total Thickness (100% Full EPDM & Polyurethane)

The Full PUR (Full Pour Polyurethane) System is the highest tier World Athletics certified track system. Built entirely from solid 100% polyurethane liquid resin and virgin EPDM granules throughout all layers with zero SBR fillers for ultimate durability and energy return.

Base Cushion Layer Poured Full Polyurethane + Embedded EPDM
Top Wear Layer Cast Full Polyurethane & Virgin EPDM Top Coat
Total System Thickness 13 mm WA / IAAF Competition Grade
Force Reduction 45% – 52% Maximum Energy Return
Recommended For Olympic Stadiums, State Sports Complexes
Expected Lifespan 15 to 20 Years (Spike Resistant)
  • 100% Spike Resistant under Heavy Track Competition
  • Maximum Kinetic Energy Return for Athletic Records
  • World Athletics Class-1 & Class-2 Certification Ready
  • All-Weather Resistance to Heavy Monsoons & Heat
TRACK COLOUR OPTIONS

Choose Your Track Colour

Select from our World Athletics approved synthetic track colors to match your university, stadium, or sports complex branding.

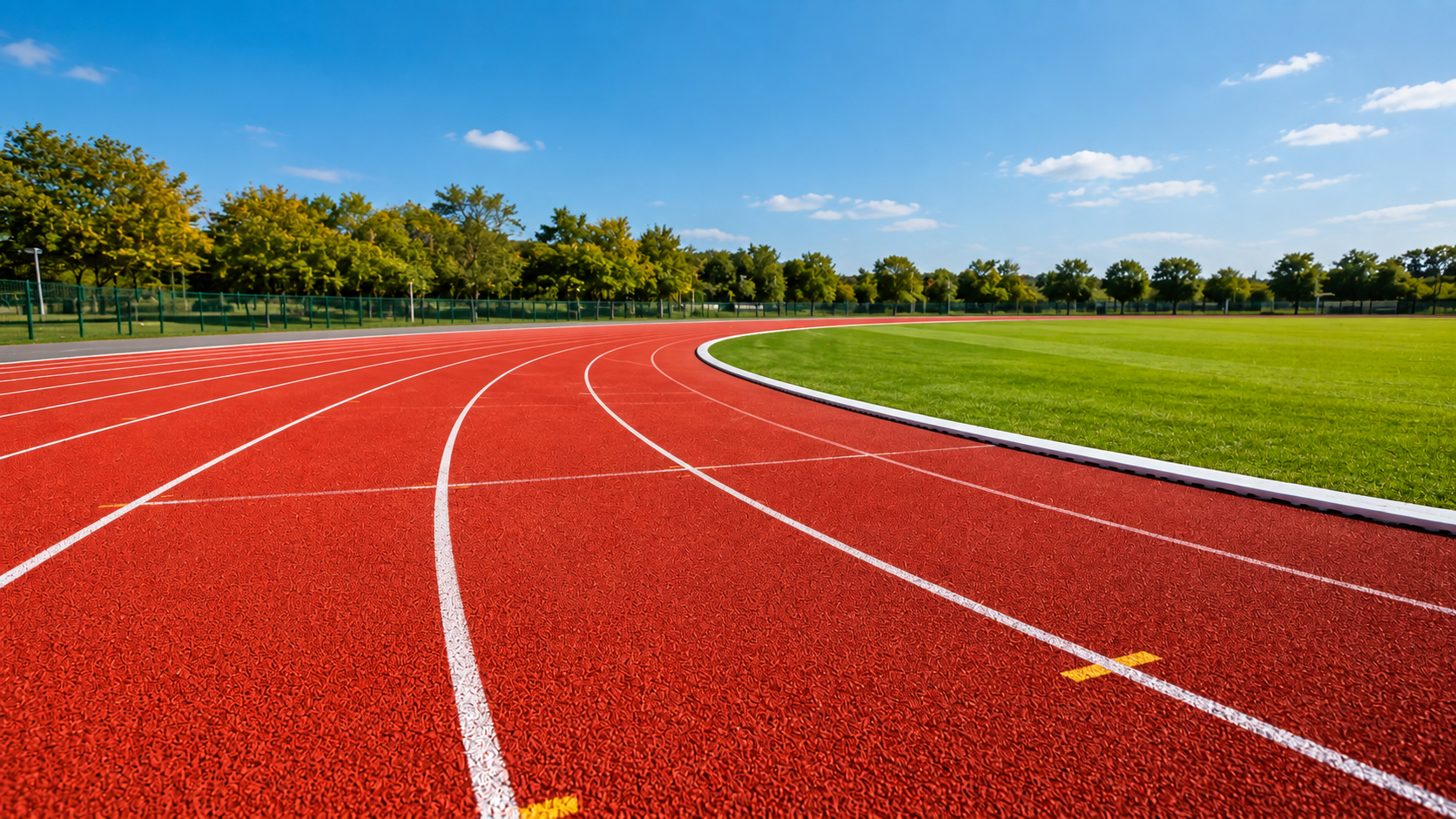

Terracotta Red Track

Terracotta / Red Track

Traditional IAAF competition color choice providing classic athletic optics and optimal line contrast.

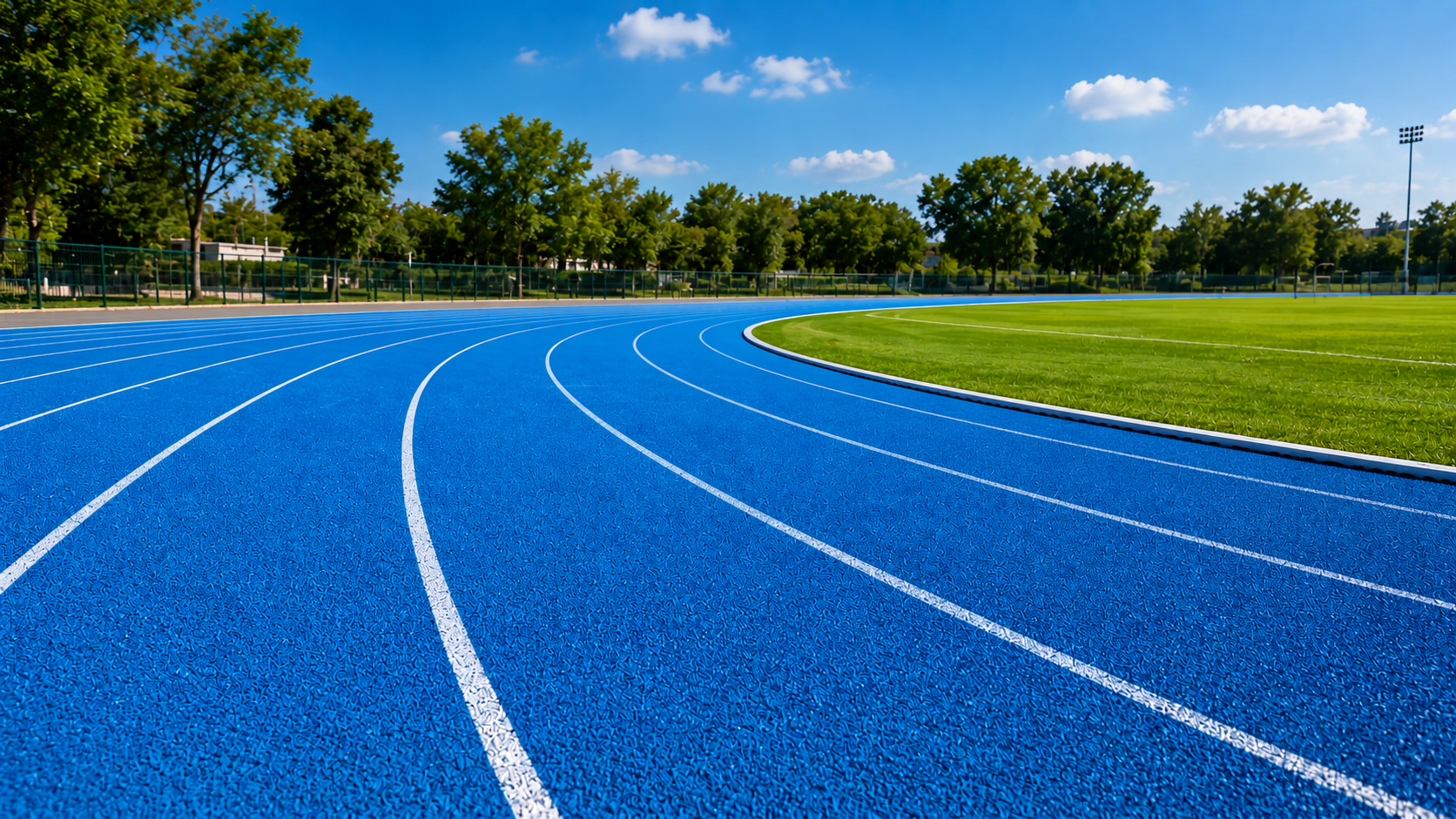

Sky Blue Track

Sky / Olympic Blue Track

Modern stadium color preference offering high visual clarity, reduced heat glare, and premium aesthetics.

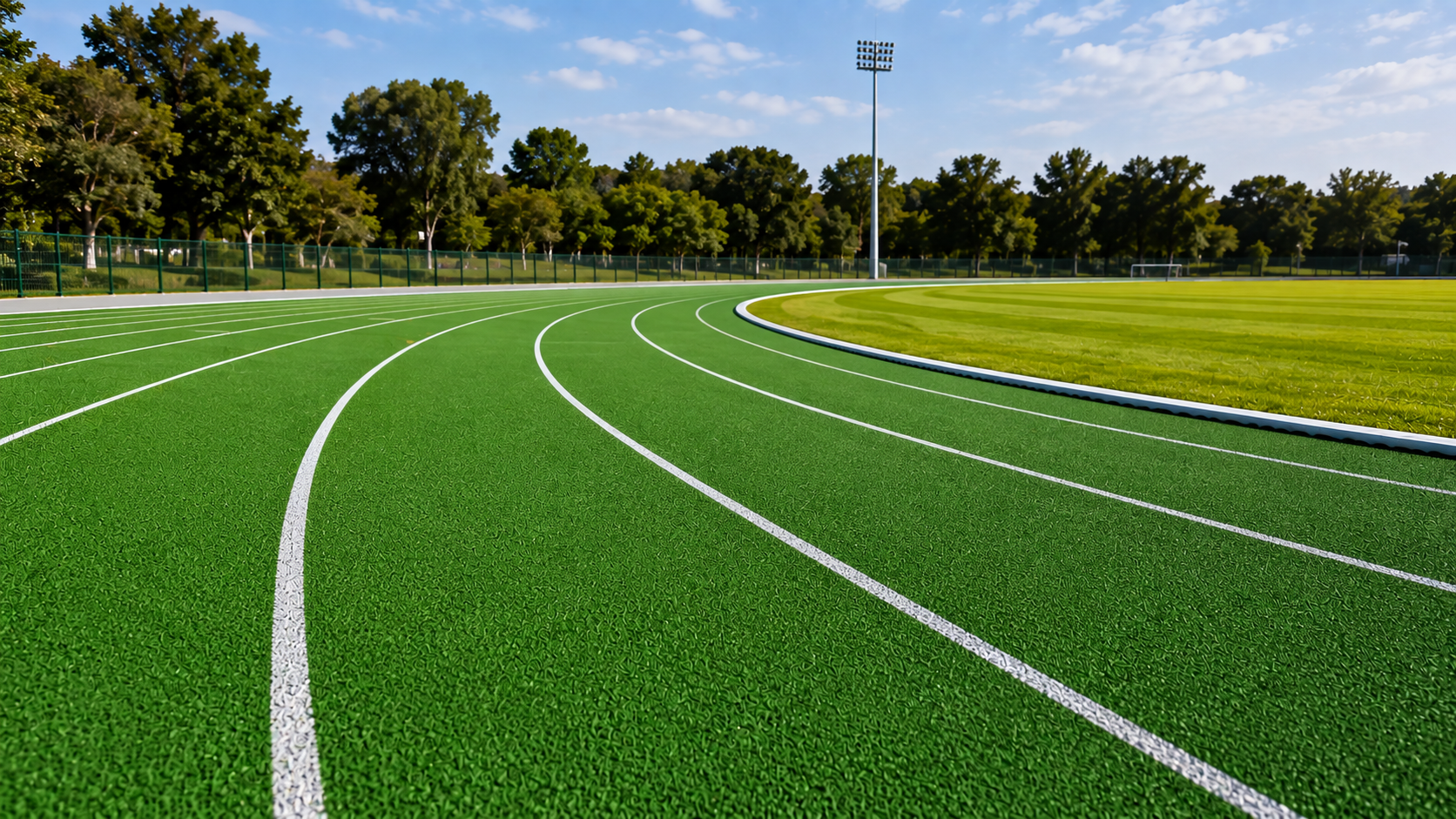

Green Track

Classic Turf Green Track

Natural sports style finish ideal for school grounds, multi-sport parks, and natural landscape integration.

TECHNICAL ANATOMY

What's Inside Your Running Track?

Every SportsCamp Infra running track is built layer-by-layer over precision asphalt or concrete bases to ensure force reduction, water drainage, and longevity.

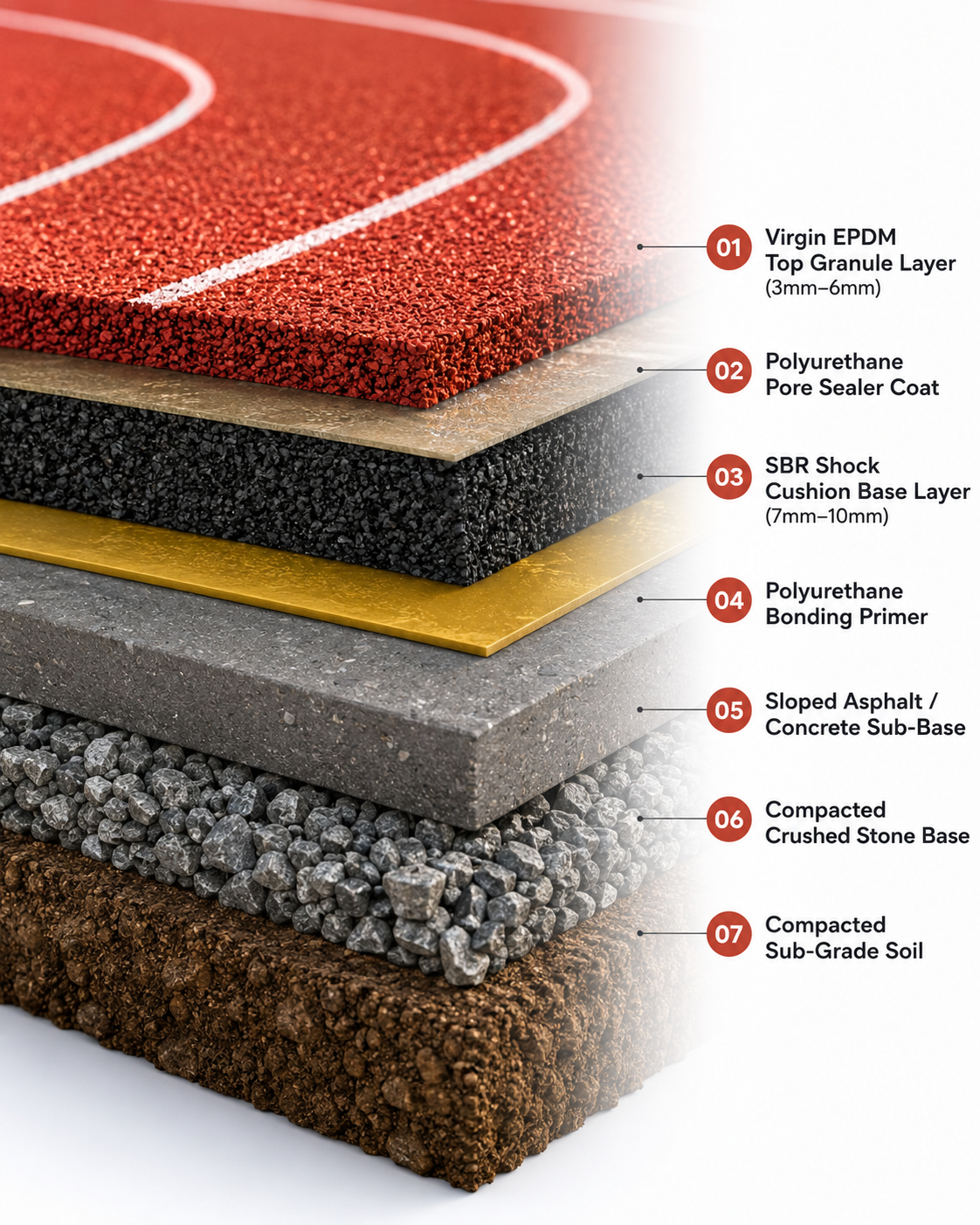

Running Track Layer Anatomy
01

Virgin EPDM Top Granule Layer (3mm–6mm)

High-purity colored virgin EPDM rubber granules (1-4mm size) providing non-slip grip, UV resistance, and spike durability.

02

Polyurethane Pore Sealer Coat

MDI polyurethane pore sealer locking the base cushion into a non-porous, waterproof unified structure.

03

SBR Shock Cushion Base Layer (7mm–10mm)

In-situ poured recycled SBR rubber granules bound with polyurethane resin absorbing foot impact forces.

04

Polyurethane Bonding Primer

High-tack primer ensuring permanent chemical adhesion between asphalt/concrete and synthetic rubber layers.

05

Sloped Asphalt / Concrete Sub-Base

Precision laser-finished asphalt (bituminous concrete) or M25 reinforced concrete slab with 0.5%–1% transverse drainage slope.

06

Compacted Crushed Stone Base

Mechanically compacted 150mm–200mm crushed aggregate base providing structural load distribution and sub-drainage.

07

Compacted Sub-Grade Soil

Stabilized and compacted natural earth sub-grade supporting the entire athletic facility structure.

PREMIUM MATERIALS

Materials We Use

Every synthetic track is constructed using international competition grade raw materials engineered for safety, speed, and durability.

01

Virgin EPDM

1-4mm Color Granules

02

SBR Rubber

7mm Cushion Base

03

PU Binder

MDI Polyurethane

04

Pore Sealer

Waterproof Seal

05

IAAF Paint

Line Marking

06

Asphalt Base

Sloped Foundation

OUR PROCESS

How We Build Your Running Track

Every synthetic track project follows a systematic 7-step engineering process to guarantee World Athletics precision standards.

Site Survey

Slope Planning

Asphalt Base

SBR Cushion

EPDM Wear Layer

Lane Marking

IAAF Handover

WORLD ATHLETICS STANDARDS

Track Specifications

Every SportsCamp Infra athletic track is designed according to official World Athletics (IAAF) layout regulations.

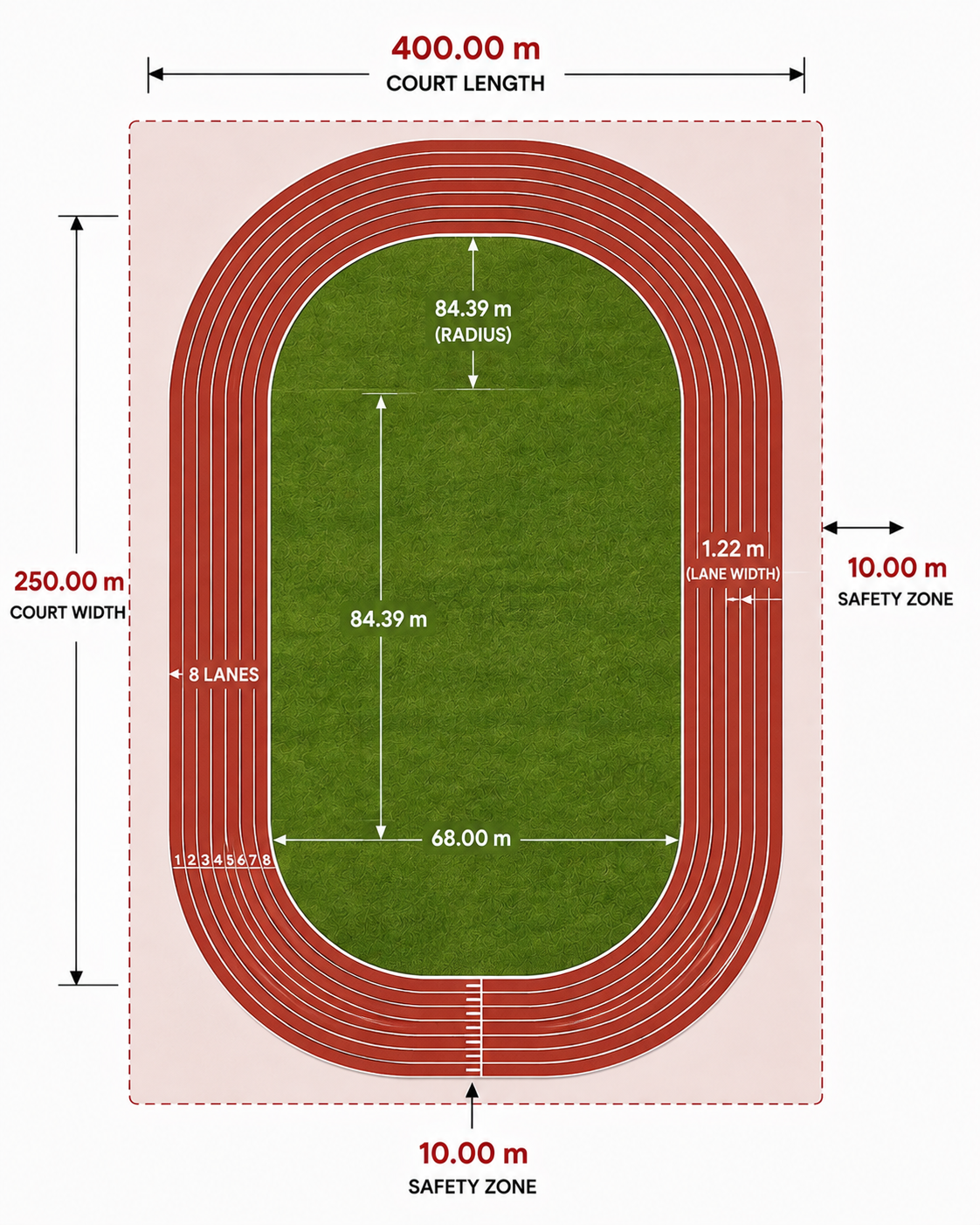

Professional Athletic Track Blueprint

400m 8-Lane Standard Layout
Running Track Blueprint
Dimensions shown are based on official World Athletics (IAAF) competition guidelines.

Standard Track Length

400.00 metres (8-Lane Standard)

Lane Width

1.22 metres per lane

System Options

13mm Sandwich System • 13mm Full PUR System

Available Colors

Terracotta Red • Sky Blue • Turf Green

Certification Standard

Built as per World Athletics (IAAF) Guidelines

Recommended For

Stadiums • Universities • Schools • Military Academies

WHY SPORTSCAMP INFRA

Why Choose SportsCamp Infra?

SportsCamp Infra is a pioneer in synthetic sports surfaces. With 500+ projects completed across India, we deliver quality, speed, and precision.

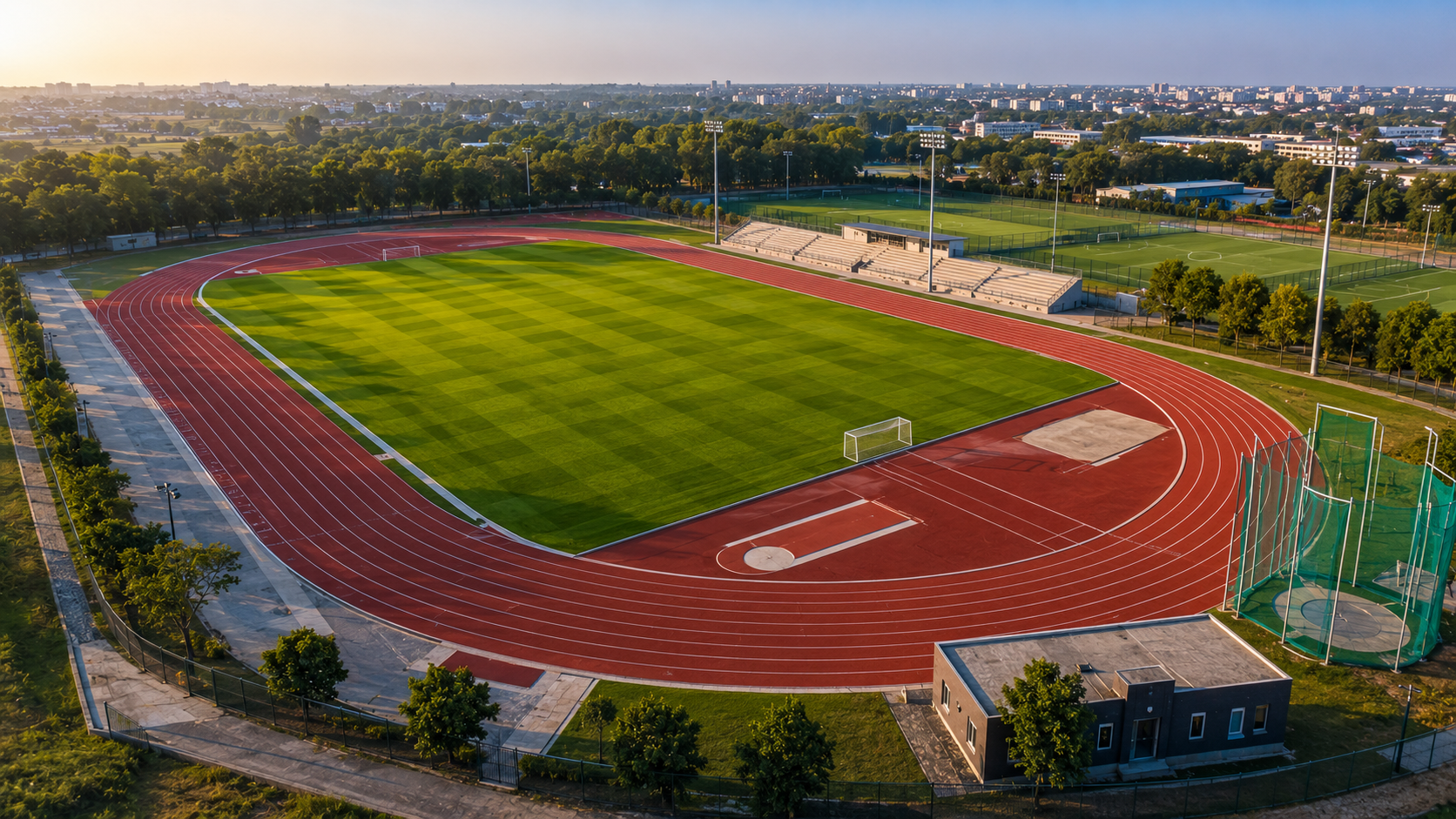

Why SportsCamp Infra

500+

Projects Completed

25+

Years Experience

100%

IAAF Quality Commitment

24/7

Customer Support

World Athletics Certified Raw Materials

We use 100% virgin EPDM rubber granules and MDI polyurethane resins compliant with World Athletics (IAAF) force reduction and friction requirements.

In-House Track Engineering Team

Our skilled civil and track surfacing engineers use motorized paver machines and laser levels to guarantee jointless, seamless finishes.

Precise Sub-Millimeter Slope Control

Every track sub-base is laser-checked to ensure 0.5%–1% transverse slope for immediate rainwater drainage during monsoons.

IAAF Compliant Line Marking

Our team applies UV-resistant polyurethane line marking paint according to official 400m 8-lane track layout rules.

Committed Project Execution

We follow a structured workflow to complete synthetic track projects within the committed contract timeline.

Complete After-Sales Support

Even after project handover, we provide periodic line marking re-touching and track maintenance guidance pan-India.

BEFORE & AFTER

See the Site Transformation

Watch how SportsCamp Infra transforms vacant soil or concrete grounds into World Athletics grade Synthetic Running Tracks.

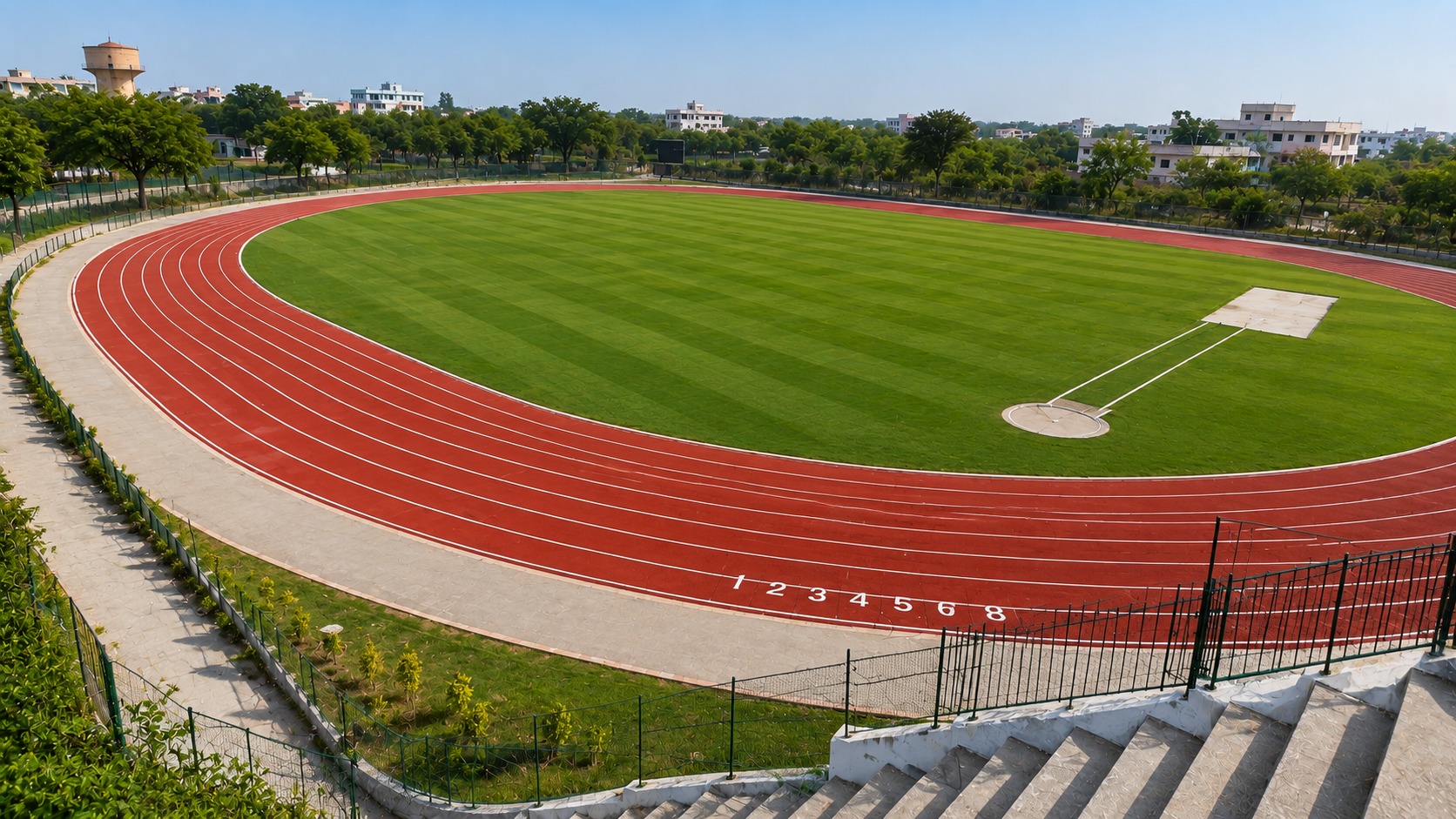

After Running Track Construction

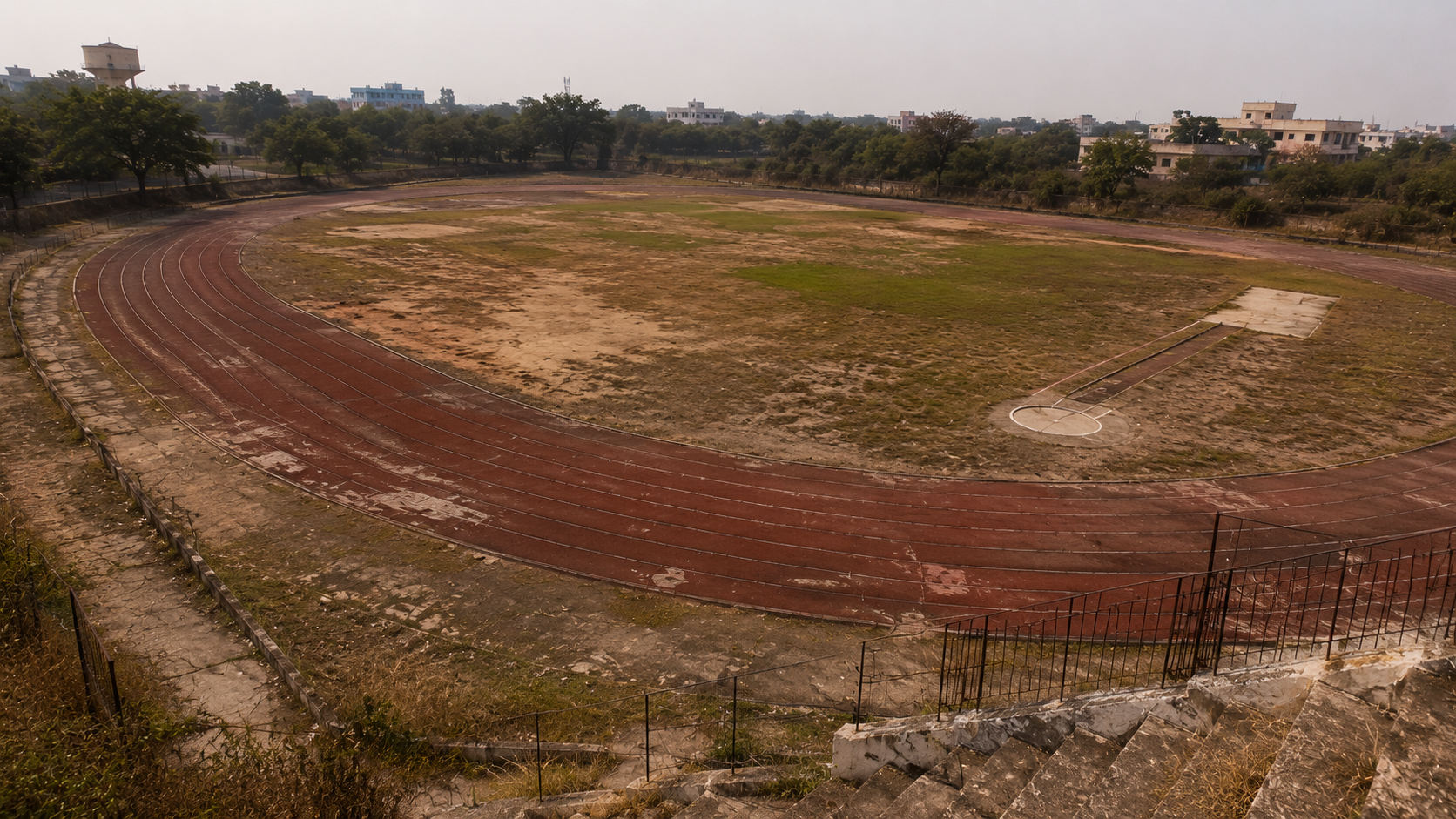

Before Track Site
Before
After
13mm Sandwich System
13mm Full PUR System
IAAF / WA Compliant
10–20 Years Durability
LET'S BUILD TOGETHER

Ready to Build Your RUNNING TRACK Facility?

Build an IAAF-compliant 13mm Sandwich System or 13mm Full PUR Synthetic Running Track engineered for maximum energy return, all-weather durability, and athletic performance. From planning to final line marking, SportsCamp Infra is India's trusted sports infrastructure partner.

Get Free Site Visit Call Now
Synthetic Running Track

Free Site Visit

On-site Inspection

Detailed Quotation

Transparent Pricing

Expert Consultation

IAAF Technical Guidance

On-Time Handover

Committed Timeline
FREQUENTLY ASKED QUESTIONS

Everything You Need to Know

Find answers to common questions about synthetic running track systems, Sandwich vs Full PUR, thickness, and IAAF standards.

The 13mm Sandwich System consists of a 7mm SBR shock cushion base layer topped with a 6mm virgin EPDM colored wear layer, making it ideal for schools and universities. The 13mm Full PUR (Full Pour Polyurethane) System is made of 100% solid liquid polyurethane resin and virgin EPDM granules throughout all layers with zero SBR fillers, offering maximum spike resistance and WA Class-1 competition ratings.

As per World Athletics (IAAF) guidelines, the standard total thickness for athletic running tracks is 13mm (7mm base cushion + 6mm top wear layer for Sandwich System, or 13mm solid PU/EPDM matrix for Full PUR System).

Synthetic running tracks require a smooth, well-compacted sub-base consisting of a 150mm crushed aggregate layer topped with a 40mm–60mm bituminous concrete (asphalt) slab or M25 reinforced concrete slab with a 0.5%–1% transverse drainage slope.

Yes! Both our Sandwich and Full PUR track systems are engineered to withstand standard 6mm to 9mm athletic track spikes without tearing or surface degradation.

Civil sub-base asphalt preparation takes 15 to 25 days, followed by 10 to 15 days of synthetic rubber surfacing, curing, and IAAF certified line marking.

SportsCamp Infra constructs synthetic athletic running tracks across all states and union territories in India for sports universities, military training grounds, government stadiums, and private academies.
